Main Engine Exhaust Overhaul & Valve Renewal, RINA-Classed Motor Yacht
We stripped both main engine exhaust systems on a RINA-classed motor yacht to the hull flanges during an extended hardstand refit. We renewed DN350 and DN400 butterfly valves with European-sourced units carrying EN 10204-3.1 material certificates. High-temperature graphite gaskets and stud bolts were custom made, and we found burn-through marks on the starboard expansion joint. The rebuilt systems were pressure tested in line with class requirements.
Stripped to the Hull Flanges
-
01
Both Systems Opened Up
With the lagging removed and the pipes lifted clear, inspection found perished seat seals, corroded valve castings and flange fasteners too corroded to reuse.
-
02
More Valves Condemned
More of the four exhaust valves were condemned than expected. The engineer had never seen a class stamp on any.
-
03
Certified Valves Sourced
We sourced new DN350 and DN400 butterfly valves through our European supply channel, with EN 10204-3.1 certificates that a RINA surveyor can accept.
-
04
Gaskets & Studs Made
Every gasket was custom made in reinforced high-temperature graphite. New studs were manufactured from threaded bar, and every nut, bolt and washer was renewed.
-
05
Expansion Joint Burn-Through
Removing the starboard expansion joint revealed burn-through marks on its gasket and flange face. New gaskets and special-order spring washers were fitted.
-
06
Pressure Tested to Class

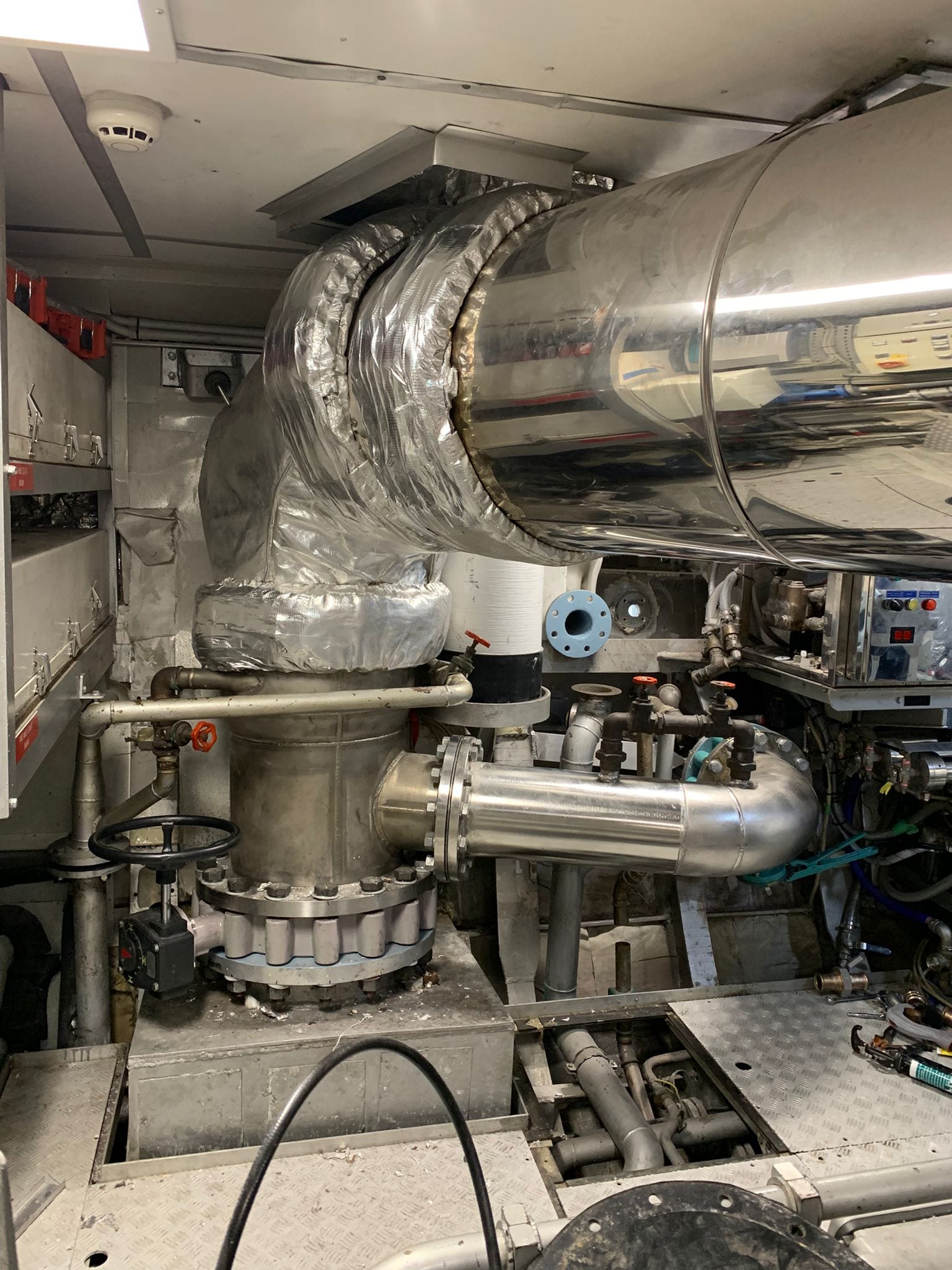

Both systems were rebuilt and re-insulated. We pressure tested from the sea chest in line with RINA practice and specified a final torque procedure after a heat cycle.

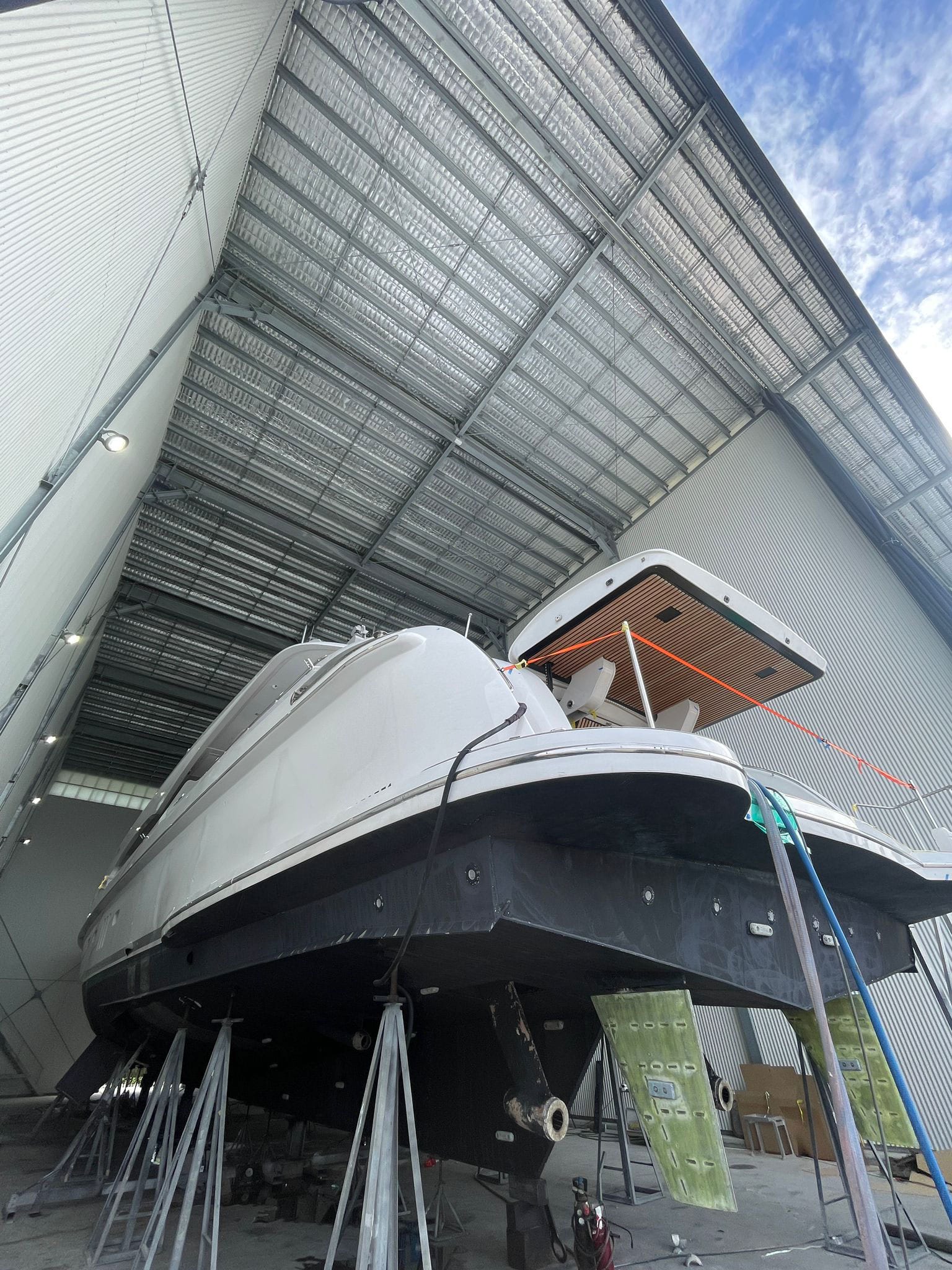

The chief engineer of a RINA-classed motor yacht on a Coomera shipyard hardstand engaged us to open both main engine exhaust systems, port and starboard, as part of an extended refit.

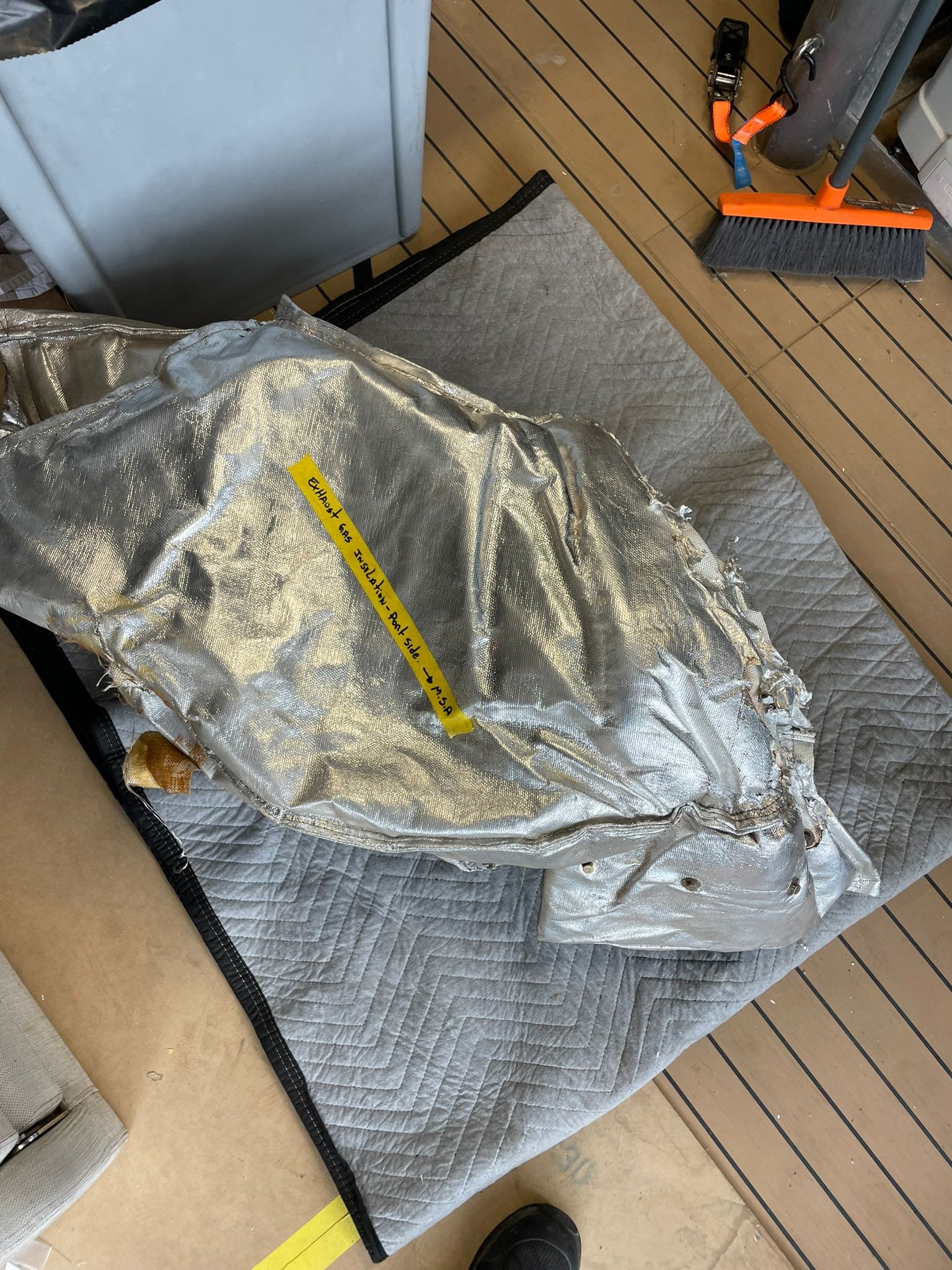

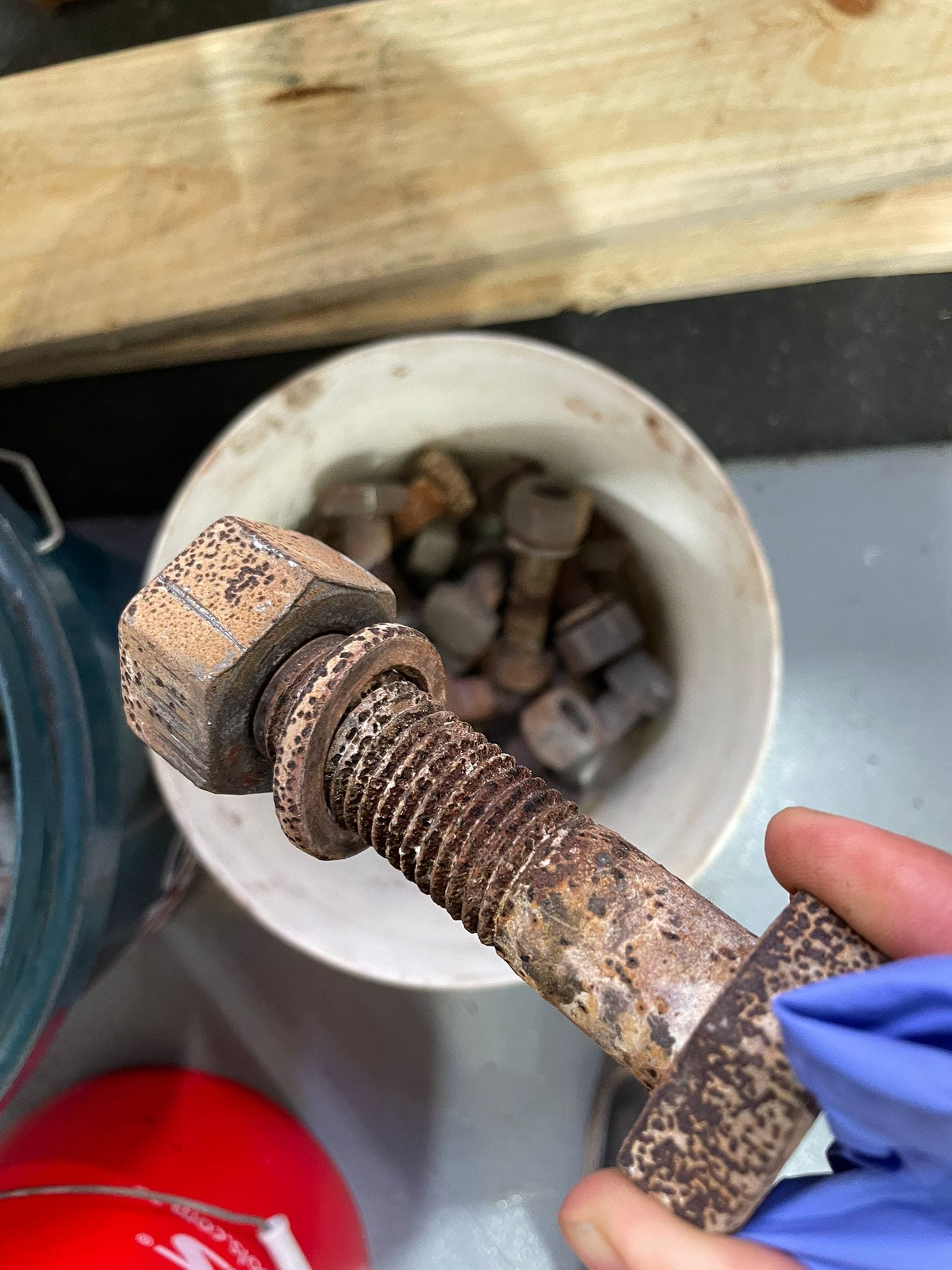

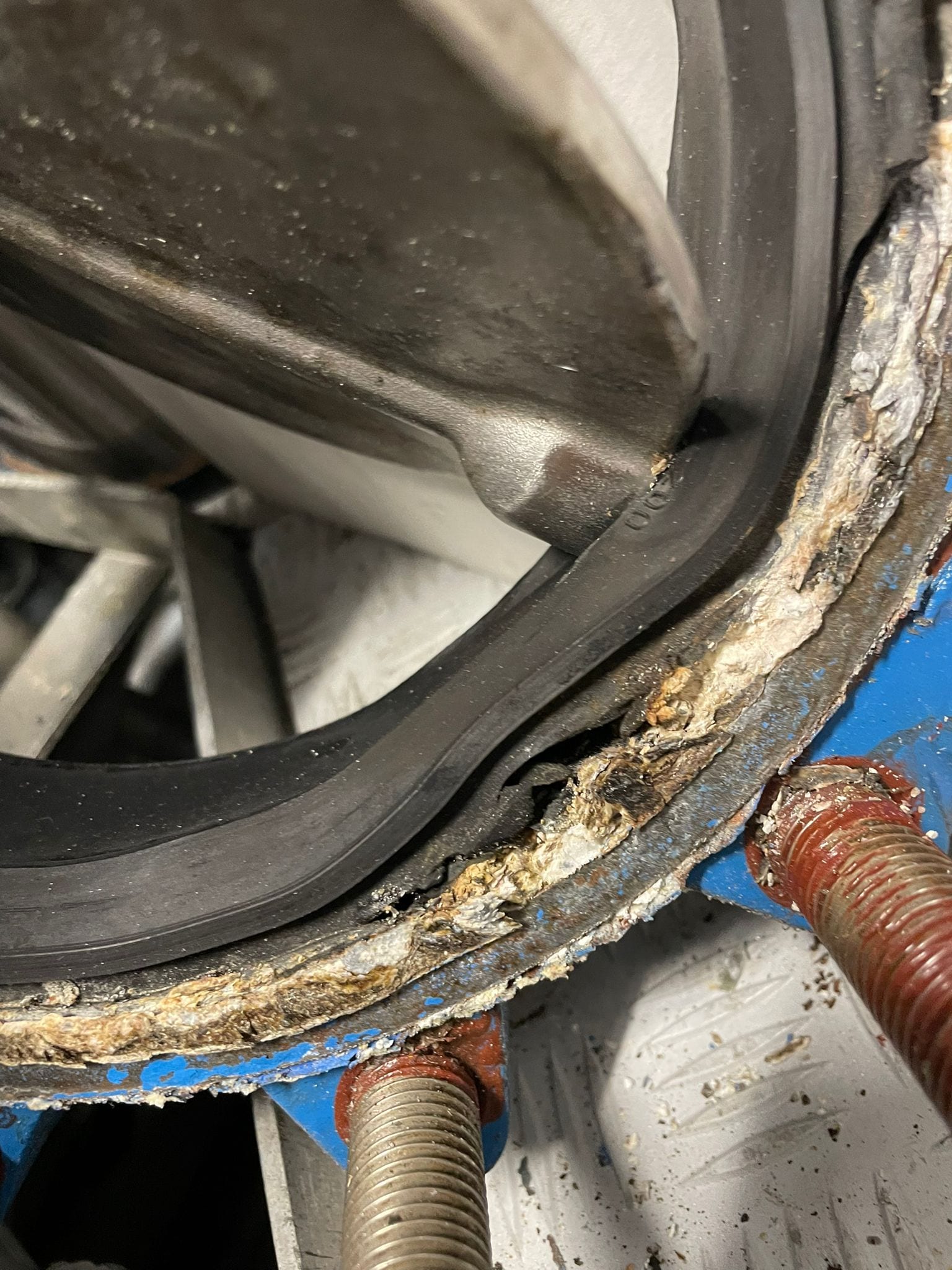

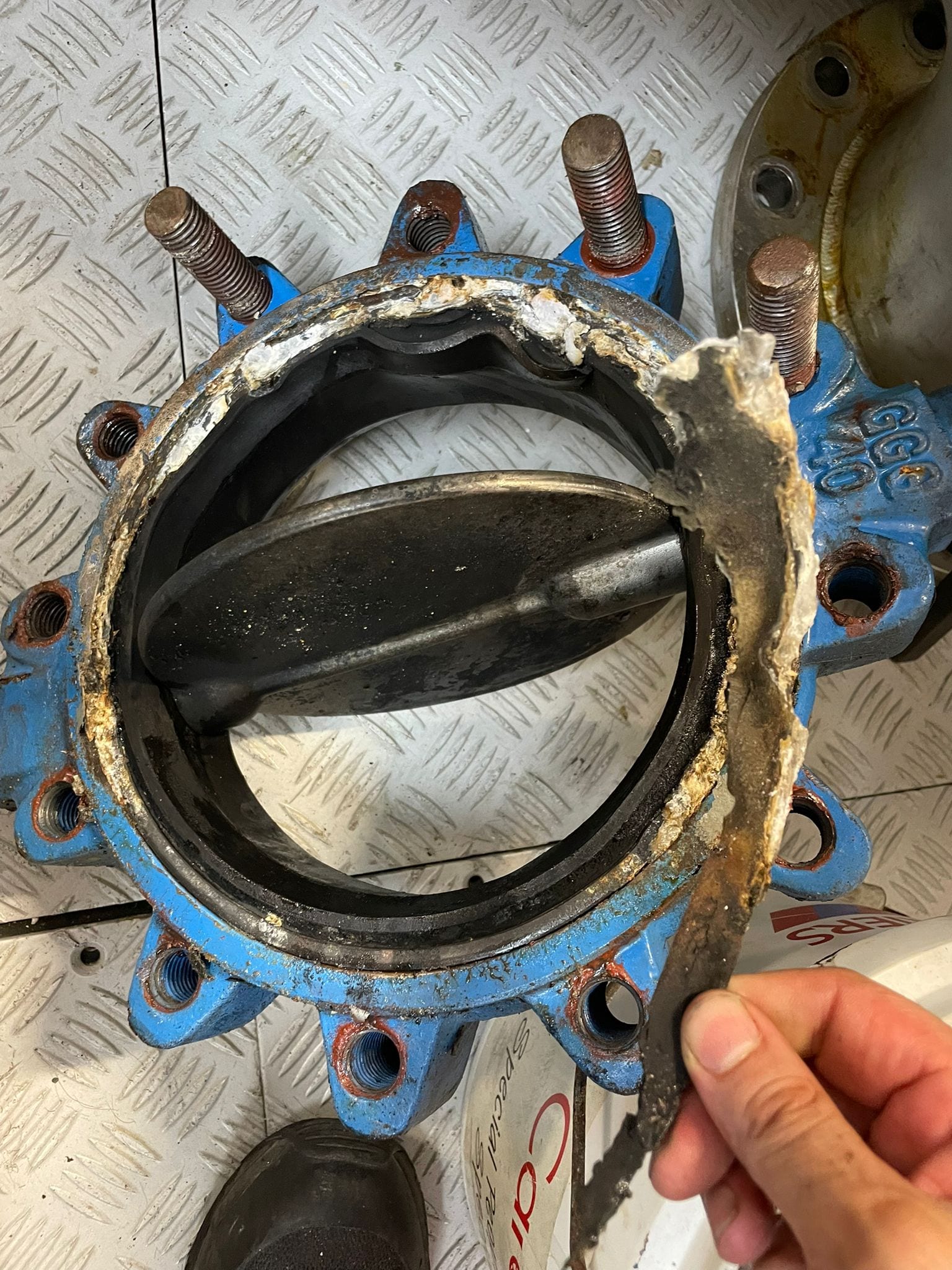

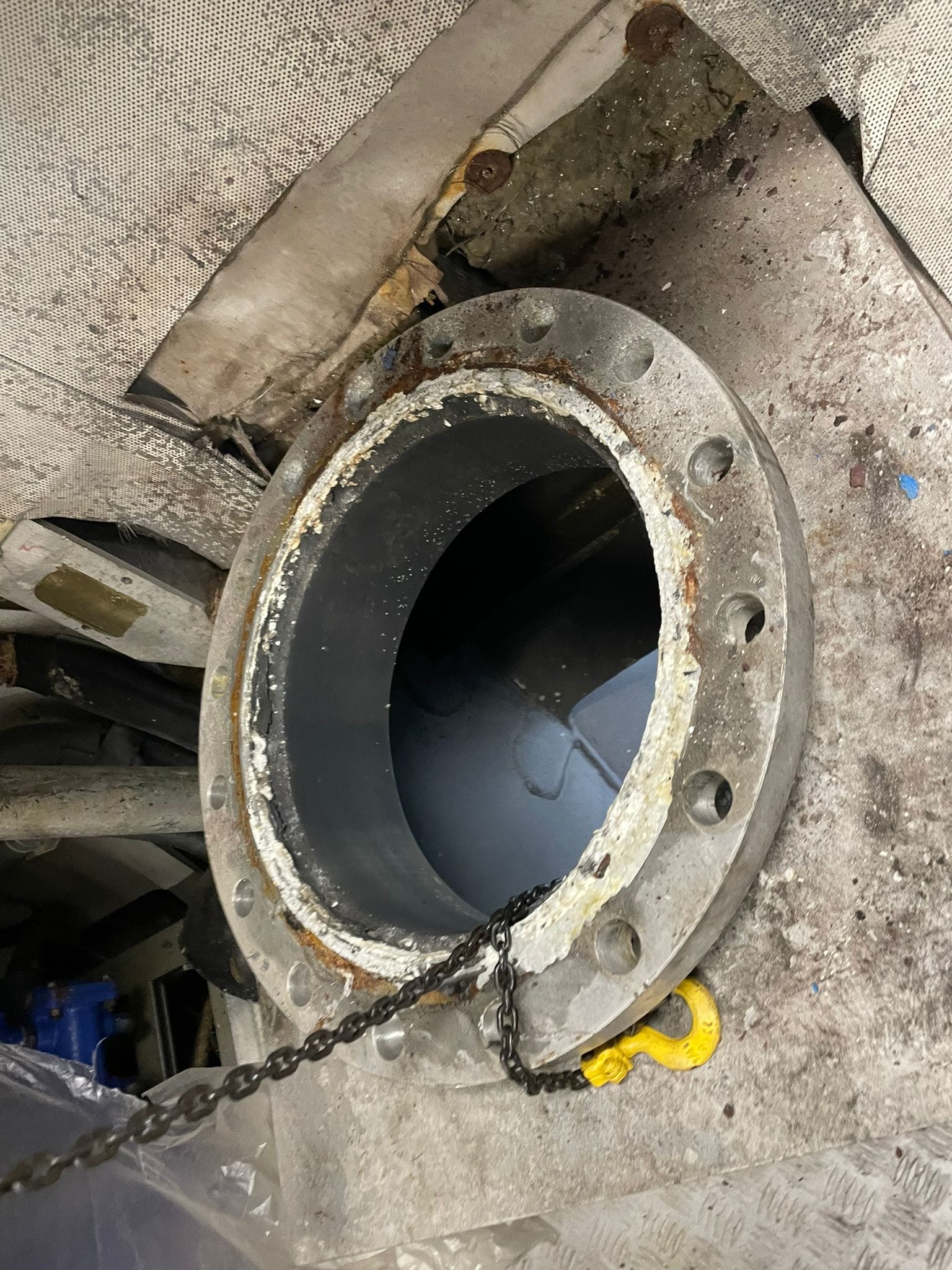

We removed the lagging blankets, tagged them and set them aside. We then unbolted and lifted clear the auxiliary piping and main exhaust pipes. The seat seals had perished and came out in fragments. We found corrosion through the valve castings and material loss in a metal elbow section. The flange fasteners were too corroded to reuse.
Inspection condemned more of the four exhaust valves than the brief had assumed. The vessel's engineer had never seen a class stamp on any of them.
We sourced new DN350 and DN400 butterfly valves through our European supply channel. Their temperature ratings were well above the measured operating temperature. They came with EN 10204-3.1 material inspection certificates, which a RINA surveyor can accept. We offered the vessel our class survey contacts and our pressure-testing history with assessors to support certification.

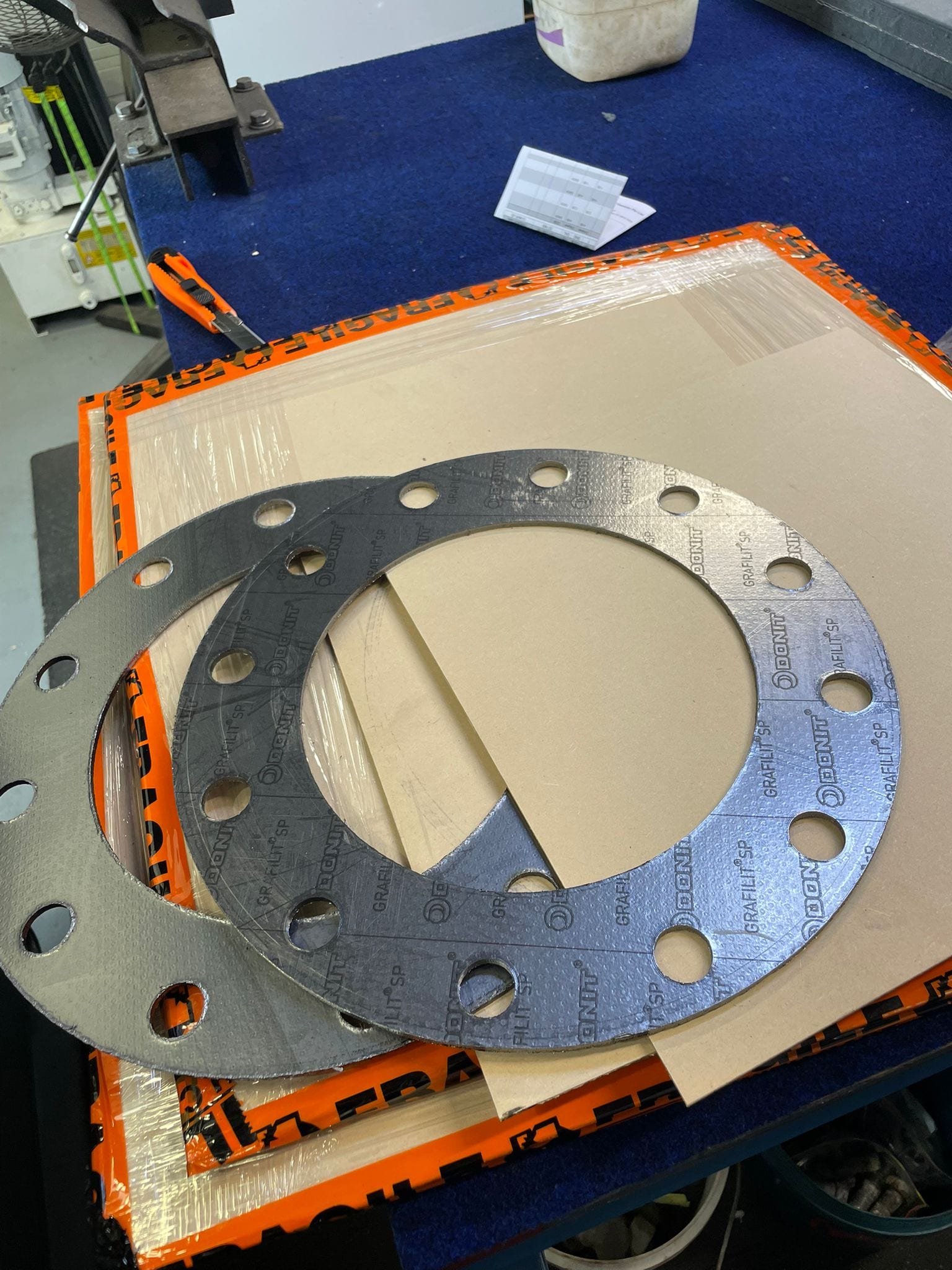

Every gasket was custom made in high-temperature graphite with metal reinforcement and checked on arrival. One batch had undersized bolt holes and was rejected and remade. The original stud bolts were too short for the new valves, so replacements were manufactured from new threaded bar. Every nut, bolt and washer in both systems was renewed.
Removing the starboard expansion joint revealed burn-through marks on its gasket and flange face. We fitted new gaskets and special-order spring washers in response.

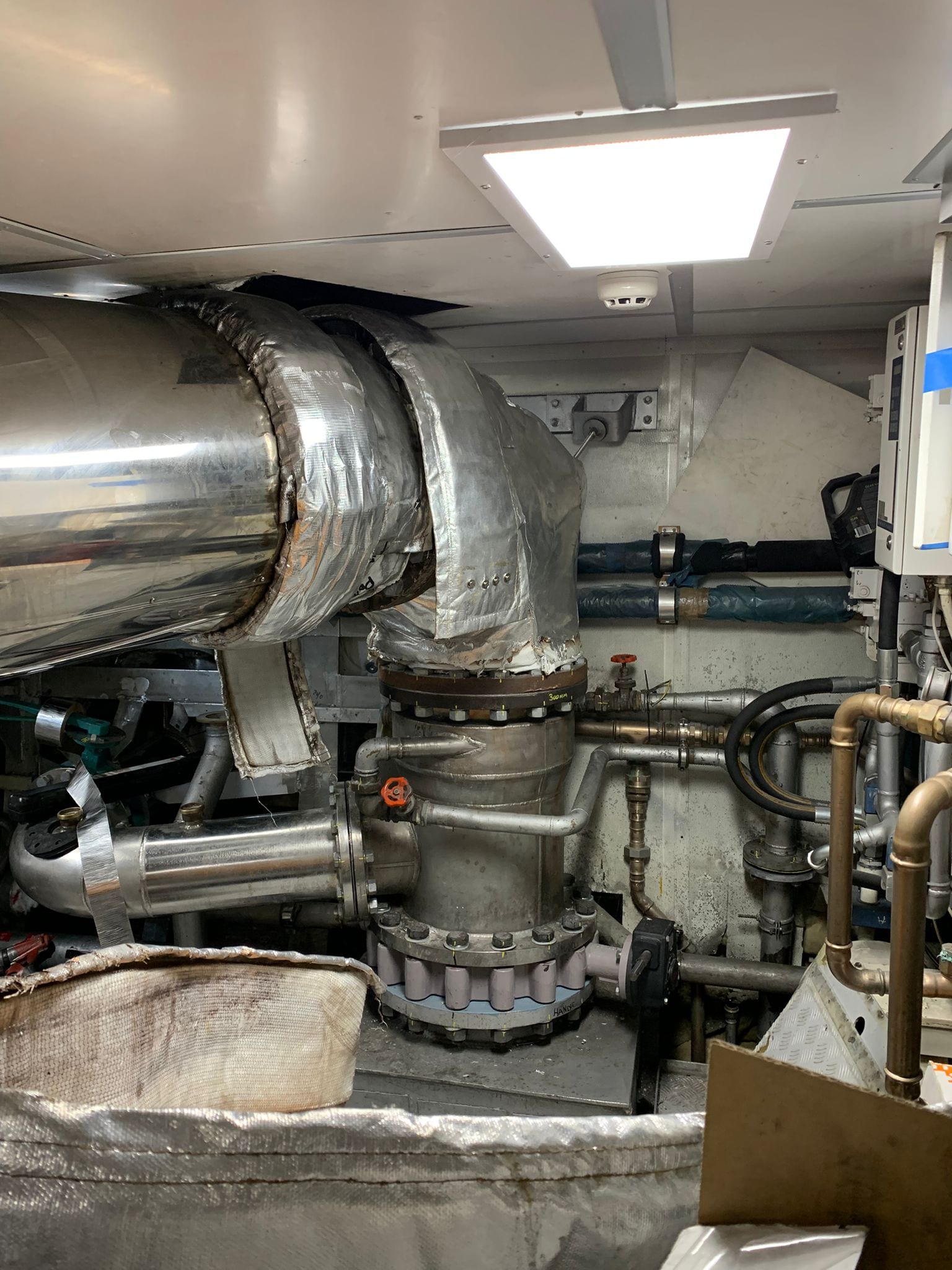

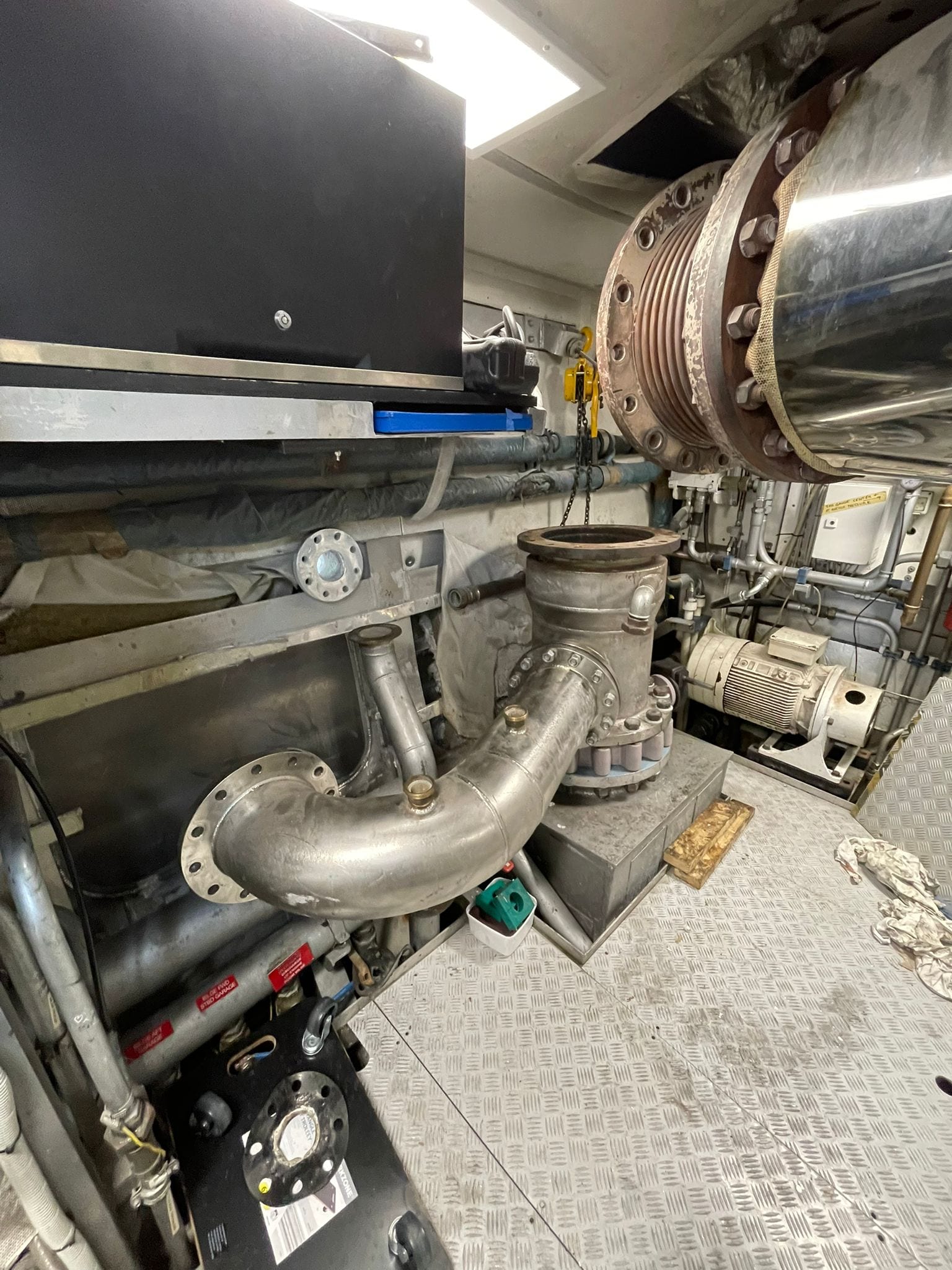

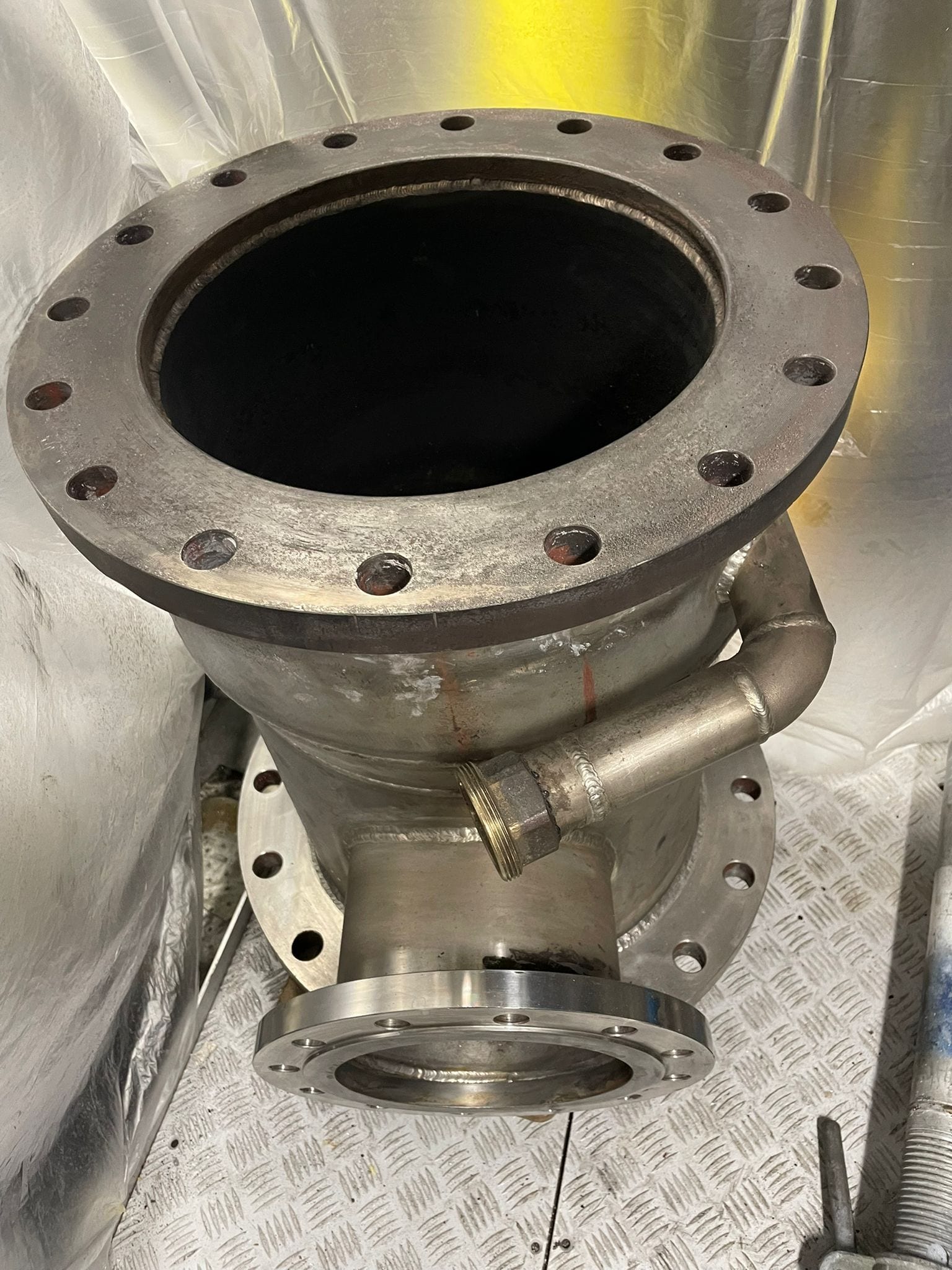

During reassembly, a curtain and extraction rig kept contamination out of the engine room while yard trades worked around us. We rebuilt both systems with the new valves, gaskets and fasteners. We reinstated the water cooling pipework with rubber gaskets cut on board because no spares could be found. We then renewed the insulation over both systems.
Before handover, we pressure tested from the sea chest using the fire line. This verified the valve-to-flange seals and disc sealing in line with RINA class practice. We specified a full heat cycle at operating temperature before tightening the fasteners to final torque after sea trial.
